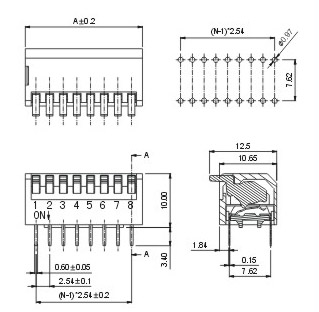

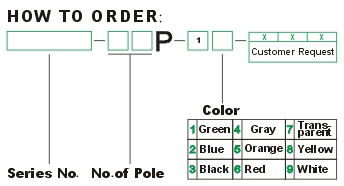

Product Description: features

Base: UL94V-0, PBT, black

Cover: UL94V-0, PBT, red, black, blue

Push button: UL94V-0, PBT, white

Terminal: copper alloy plating

Mechanical characteristics

Operation: 0.2kgf Max

Push button stroke: 2.0mm

Operating temperature: -20 C to 70 º Cº

Storage temperature: -40 C to 85 º Cº

Electrical characteristics

Electrical life: each switch in the voltage and current of 25mA 24VDC under test, and struck 2000 times

The switch doesn't often switch rated current: 100mA, voltage 50VDC

Switch switch current rating: 25mA, voltage 24VDC

Contact resistance: initial value maximum 50m

Insulation resistance: the minimum 100m, 500VDC

Compressive strength: 500VAC/1 minutes

International: maximum 5PF pole capacitor

Loop: single contact single selection

Welding and cleaning process

For best results, please click the following requirements operation:

In all the operation process, please make sure that the switch is in the " OFF" position.

Wave soldering: recommended soldering temperature at 500° F (260 °) for up to 5 seconds.

Hand soldering: use 30 watt soldering iron, temperature control at 608° F (320 °), welding time is about 2 seconds.
