Product details



Product Description:
Electrical
Standard
UL
IEC
Rated voltage
300V
250V
Rated current
6.3A
6.3A
Wire range
22-14AWG
0.5-2.5mm2
Withstanding voltage
AC2500V/1Min

Mechanical
Torque
0.5Nm(4.5Lb-In.)
Ambient temperature
-40°C~+T110°C
Strip length
6-7mm

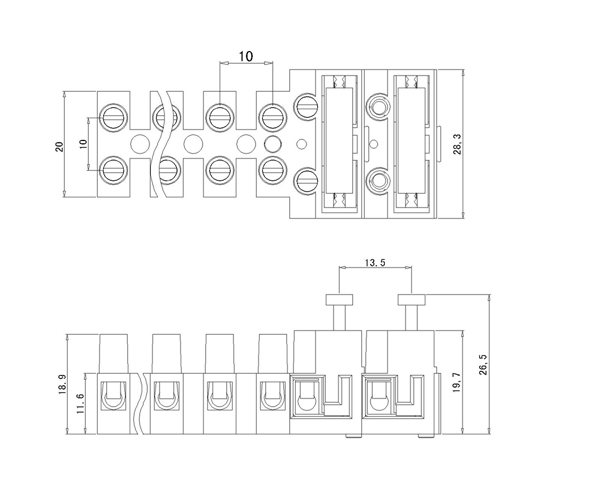

Dimensions
Pitch
10.0mm(.394")
Poles
1P-10P

Material
Housing
PA66,UL94V-0
Screws
M3,steel,Cr3+ Zn plated
Cage
Brass, Niplated
Contact
Phosphor bronze,Niplated
Wire guard
Stainless steel
