Product details

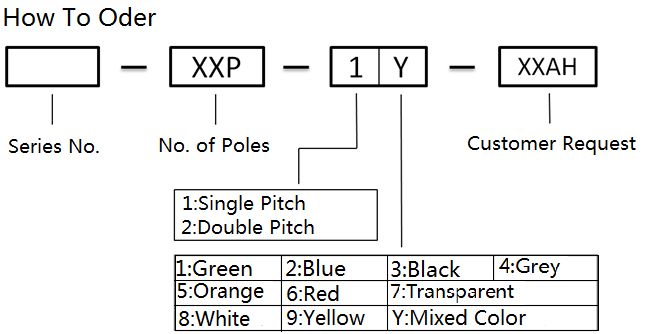

| Pitch［mm］ 5.00 | PDF Drawing file download |
| Number of poles 02P,03P～24P | |
| Approvals | UL Certification link |
| Technical Data | |||
| Item | Date | ||
| Test standard | IEC60998-2-1/UL1059 | ||
| EN60998-2-1 Test date | |||
| Rated insulation voltage ［V］ | 250 | ||
| Rated current ［A］ | 24 | ||
| Rated connection capacity)(solid/stranded［mm2］ | 2.5 | ||
| Surge voltage category/Pollution degree/Material group | III/2/I | ||
| Withstanding Voltage [KV/min] | 2.5 | ||
| Rated Surge Voltage [KV] | 4 | ||
| Rated torque ［N.m］ | 0.5 | ||
| UL1059 Test date(UL File Number E467946) | |||
| Use group | B | C | D |
| Rated insulation voltage ［V］ | 300 | / | 300 |
| Rated current ［A］ | 15 | / | 10 |
| Rated connection capacity (solid/stranded) [AWG] | 22～12 | ||
| Rated torque ［Lbf.in] | 4.43 | ||
| Other data | |||
| Ambient temperature［℃］ | -30～+120 | ||
| Stripping length［mm］ | 5～6 | ||
| Plastic material/Inflammability class | PBT/UL94 V-0 | ||
| Screw specification/Material/Plating | M3/Steel/Zine plating | ||
| Conductor material/Plating | Copper alloy/Tin plating | ||
| Shrapnel | Stainless steel | ||
| The use of Technology | |||
|
The Terminal Blocks（N poles)connector used welding way connected with the PCB board, wave 260±5℃/5s, 2, a total of 10s, hand-we
|
|||
