Product details

产品说明：
电气性能
参考标准
UL
IEC
额定电压
300V
250V
额定电流
16A
18A
导线线径
24-12AWG
2.5mm2
耐电压
AC2000V/1Min

机械性能
扭力矩
0.4Nm(3.5Lb-In.)
环境温度
-40°C~+105°C
剥线长度
7mm

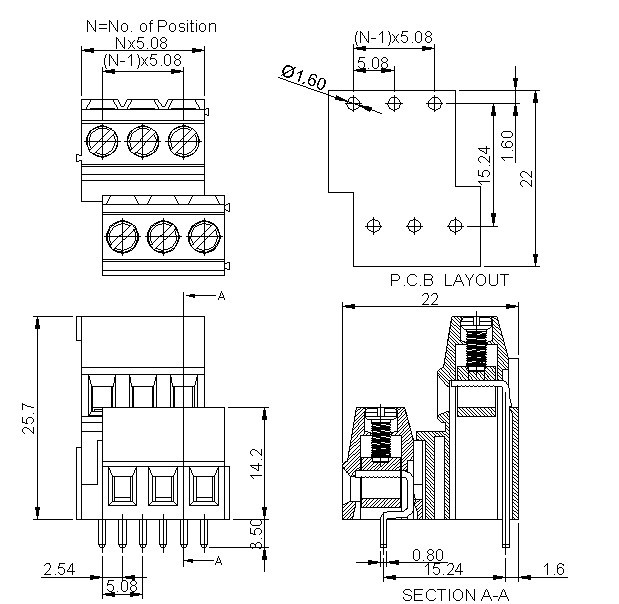

尺寸
间距
5.0mm(.197") 5.08mm(.200")
极数
2*(2P,3P-24P)

材质和电镀
塑件
PA66,UL94V-0
螺丝
M2.5,钢,镀Cr3+钝化彩锌
焊针
黄铜,镀锡
方盒
黄铜,镀镍
