GJ001R-5.0
返回上一级
产品详情

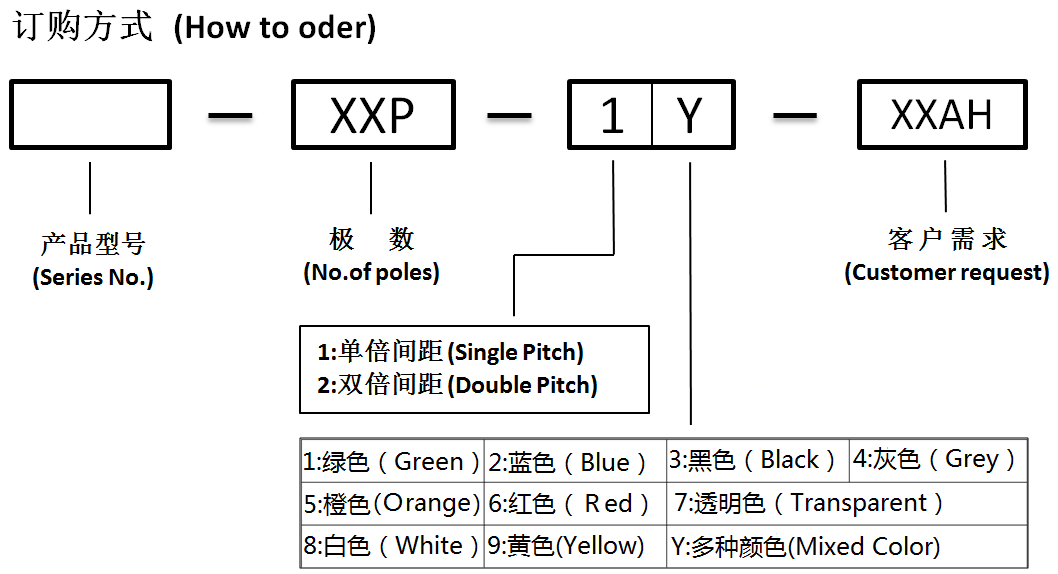

| 产品间距(Pitch)［mm］ 5.00 | PDF 图纸文件下载 |
| 极数(Number of poles) 02P,03P～24P | |
| 认证（Approvals）: | UL认证链接 |
| 技术参数(Technical Data) | |||
| 项目(Item) | 数据(Date) | ||
| 测试标准(Test standard) | IEC60998-2-1/UL1059 | ||
| IEC60998-2-1测试数据(EN60998-2-1 Test date) | |||
| 额定电压(Rated insulation voltage) ［V］ | 250 | ||
| 额定电流(Rated current) ［A］ | 24 | ||
| 额定连接容量(Rated connection capacity)(solid/stranded)［mm2］ | 2.5 | ||
| 过压类别(Surge voltage category)/污染等级(Pollution degree)/绝缘材料组别(Material group) | III/2/I | ||
| 工频耐压(Withstanding Voltage) [KV/min] | 2.5 | ||
| 额定冲击电压(Rated Surge Voltage) [KV] | 4 | ||
| 额定扭矩(Rated torque)［N.m］ | 0.5 | ||
| UL1059测试数据(UL1059 Test date) (UL File Number E467946) | |||
| 应用组别(Use group) | B | C | D |
| 额定电压(Rated insulation voltage) ［V］ | 300 | / | 300 |
| 额定电流(Rated current) ［A］ | 15 | / | 10 |
| 22～12 | |||
| 额定扭矩(Rated torque) ［Lbf.in | 4.43 | ||
| 其它数据(Other data) | |||
| 使用温度(Ambient temperature)［℃］ | -30～+120 | ||
| 剥线长度(Stripping length)［mm］ | 5～6 | ||
| 塑件材质(Plastic material)/阻燃等级(Inflammability class) | PBT/UL94 V-0 | ||
| 螺丝规格(Screw specification)/材料(Material)/电镀(Plating) | M3/钢(Steel)/镀锌(Zine plating) | ||
| 导体材料(Conductor material)/电镀(Plating) | 铜合金(Copper alloy)/镀锡(Tin plating) | ||
| 弹片（Shrapnel） | 不锈钢（Stainless steel） | ||
| 工艺使用（The use of Technology） | |||
|
此种接线端子（N芯）连接器采用焊接的方式与PCB板连接，波峰焊接260±5℃/5s、2次共10s，手工烙铁焊接350±5℃/10s，使用连接方式有以下几种。[The Terminal Blocks（N poles)connector used welding way connected with the PCB board, wave 260±5℃/5s, 2, a total of 10s, hand-we]
|
|||
